Surface Water Drainage Systems

We offer the UK's most extensive range of surface water drainage systems suitable for highways, rail, airport, ports, harbours, commercial and public sector projects.

Our extensive range of surface water drainage systems include Ridgidrain and Ridgistorm-XL thermoplastic structured walled piping systems, which range from 100 - 3000mm in diameter, have a design life in excess of 60 and 100 years respectively. They are complemented by a complete range of gullies, land drainage solutions, filter drains, flow control devices and access and inspection chambers.



In addition, our surface water drainage systems separate everything from silt and debris through to heavy metal pollutants improving the quality of water entering the watercourse.



Polypipe surface water drainage solutions can accommodate any surface area and scale of construction. They meet all relevant regulations, standards and legislation, and come with WRc, BBA and PADS approval where possible.

The benefits of Polypipe's Surface Water Drainage Systems include:

  • Manufactured in durable HDPE
  • A range of adaptors available
  • Light in weight with superior strength
  • Designed to optimum stiffness classification
  • Excellent load bearing capability
  • Superior performance in areas of differential settlement
  • Excellent resistance to sulphate and chemical attack
  • Superior hydraulic performance achieved through smooth bore
  • 100% recyclable



For more information head over to our Technical Hub where you can download our latest datasheets, standard details, certifications and specification clauses for Polypipe Surface Water Drainage Systems. You can also contact our Technical Team for a rapid response to all enquiries.

Ridgidrain Pipe System
Ridgidrain is used for non-pressurised surface and sub-surface drainage applications.
Ridgidrain plain ended pipe - surface water drainage

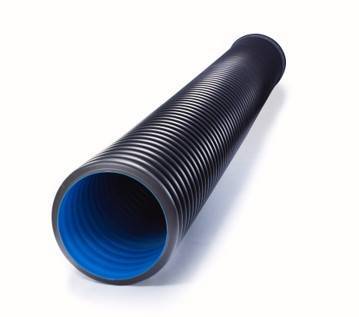

Ridgidrain Plain Ended Pipe

Ridgidrain Plain Ended Pipes are available in diameters from 100-900mm. They are approved by the BBA, BBA HAPAS and Network Rail. Unperforated (U), half perforated (HP) and fully perforated (P) options ...

Ridgidrain Integrally Socketed Pipe | Polypipe Civils

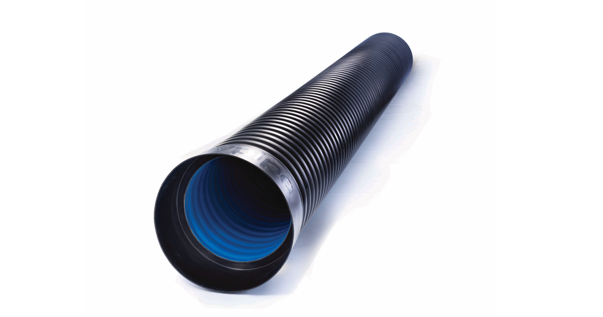

Ridgidrain Integrally Socketed Pipe

Ridgidrain Integrally Socketed Pipes are available in diameters from 400-900mm, with sizes 1050mm and above available as Ridgistorm-XL. They are approved BBA, BBA HAPAS and Network Rail PADS Approved. U ...

Ridgidrain Sealing Ring | Polypipe Civils

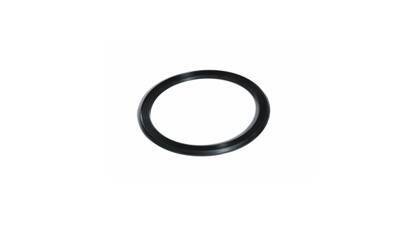

Ridgidrain Sealing Rings

Ridgidrain Sealing Rings are provided as both Nitrile Sealing Rings and standard Sealing Rings. Both are Network Rail PADS Approved and are available in diameters from 100-600mm. Nitrile Seals are made ...

Ridgidrain Couplers | Polypipe Civils | Double Socket

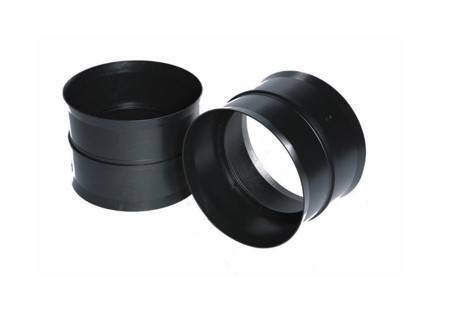

Ridgidrain Couplers

Ridgidrain Double Socket Couplers are available in diameters from 100-600mm and are BBA, BBA HAPAS and Network Rail PADS Approved. Slip Couplers are available on request. Order seals separately if requi ...

Ridgidrain Bends | Polypipe Civils

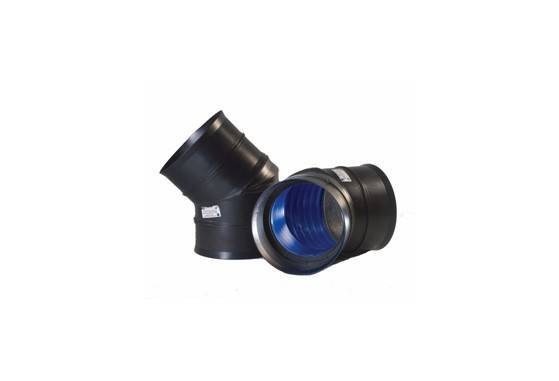

Ridgidrain Bends

Ridgidrain Bends are available in 100-600mm diameters, and in a range of radii from 11.25° through to 90°. All bends are BBA, BBA HAPAS and Network Rail PADS Approved. Sizes 750mm and above are availa ...

Ridgidrain Junction | Polypipe Civils

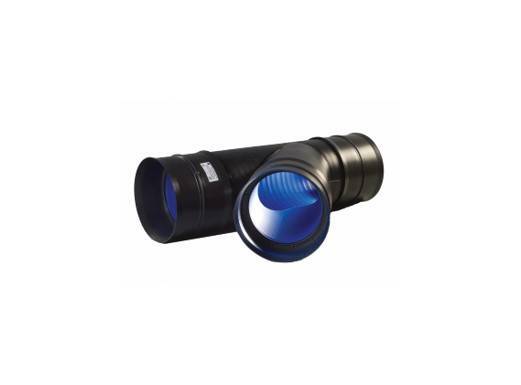

Ridgidrain Junctions

Our Ridgidrain Junctions are available in 100-600mm diameters and manufactured in 45° and 90° radii. All junctions are BBA, BBA HAPAS and Network Rail PADS Approved. Sizes 750mm and above are availabl ...

Ridgidrain End Caps

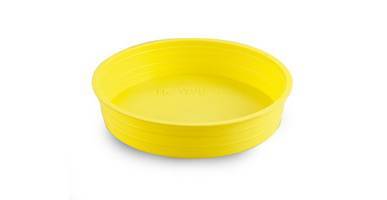

Ridgidrain End Caps

Ridgidrain End Caps are provided as both Internal and External Sealable End Caps. Internal End Caps are manufactured in 100-300mm diameters, while External Sealable End Caps are manufactured in 100-600m ...

Ridgidrain Reducer | Polypipe Civils

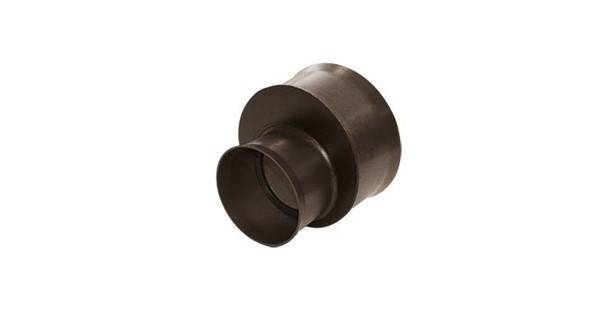

Ridgidrain Reducers

Our Ridgidrain Reducers have Network Rail PADS Approval and are available in 100-600mm diameters. Some junctions are made to order and subject to lead times. Order seals separately if required. ...

Ridgidrain Adaptor | Polypipe Civils

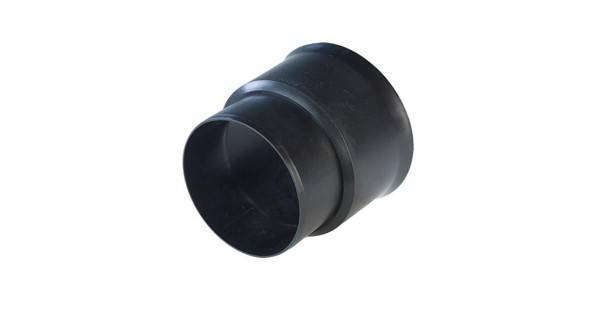

Ridgidrain Adaptors

Ridgidrain Adaptors can be divided into three distinct types - Ridgidrain to BS EN 1401 Spigot and Socket, Ridgidrain to Super Clay Socket and Ridgidrain to Thick Clay Socket. Some adaptors are made to ...

Ridgichute | Polypipe Civils

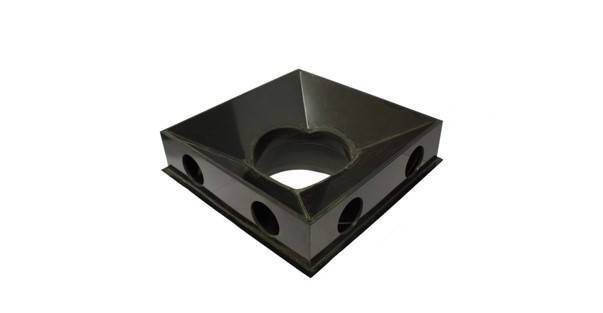

Ridgichute

Ridgichute is a sumpless gully that has been designed for use on carriageways for the capture of surface water drainage from a larger catchment area than traditional gully pots. The main benefit of its ...

Ridgidrain Installation Stubs | Polypipe Civils

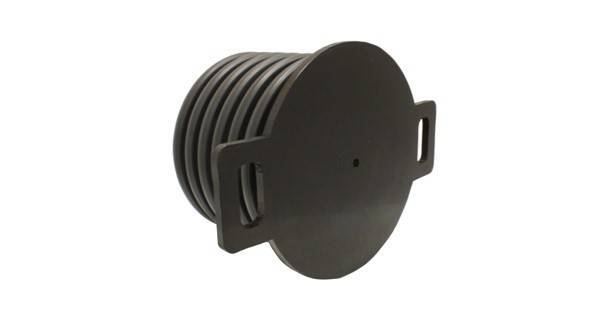

Ridgidrain Installation Stubs

Installation Stubs are available for both Ridgidrain and Ridgisewer for pipe sizes 400-600mm. They assist with the safe jointing of pipes by providing a flat surface for on-site construction machinery t ...

Ridgigully, Midigully & Ridgiflex
Ridgigully is a high-quality alternative to heavy concrete gullies, Midigully is an ideally sized gully for domestic and smaller capacity industrial and commercial applications.
Ridgigully

Ridgigully

Ridgigully is manufactured in durable HDPE and incorporates unique, patented screw thread corrugations. It is BBA HAPAS Approved and is a high quality, light, easy to handle and install alternative to h ...

Midigully

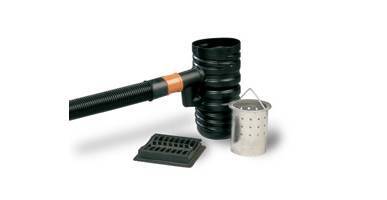

Midigully

Midigully is suitable for connection to 110mm BS EN 1401 sockets that can also be adapted to 100mm Ridgidrain. Manufactured in durable HDPE, it ideally sized gully for domestic and smaller capacity indu ...

Linflex Fin and Narrow Drains
Linflex Fin and Narrow Filter Drains provide drainage for both surface and sub-surface water.
Linflext Type 6 Fin Drain

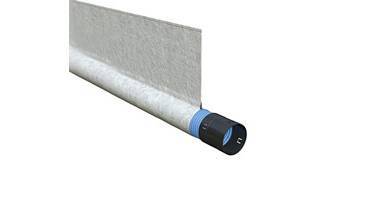

Linflex Type 6 Fin Drain

Linflex Type 6 Fin Drain is a BBA Approved PVCu perforated corrugated pipe to BS 4962:1989 assembled with a composite plastic fin of two layers of geotextile separated by a plastic core. Manufactured in ...

Linflex Type 8 Narrow Filter Drain

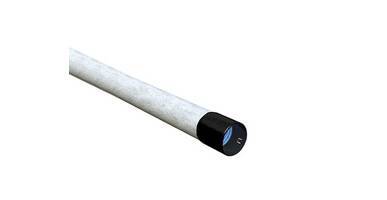

Linflex Type 8 Narrow Filter Drain

Linflex Type 8 Narrow Filter Drain is a BBA Approved single wall PVCu perforated corrugated pipe to BS 4962:1989, supplied in geotextile. Manufactured in accordance with MCHW, Volume 1, sub-clause 515. ...

Ridgitreat Treatment Pipes
Ridgitreat surface water treatment pipes are designed to complement the Ridgidrain range, providing enhanced stormwater treatment when incorporated into SuDS applications.
Ridgitreat Pipe

Ridgitreat Pipe

Ridgitreat surface water treatment pipes are designed to complement the existing Ridgidrain range when using a treatment infiltration solution, and enhance water quality when used as part of a source co ...

Landcoil
The Landcoil range is specifically designed to aid in the successful management of land water, it offers significant improvements in areas where poor drainage negatively affects ground quality.
Landcoil Polypipe Civils

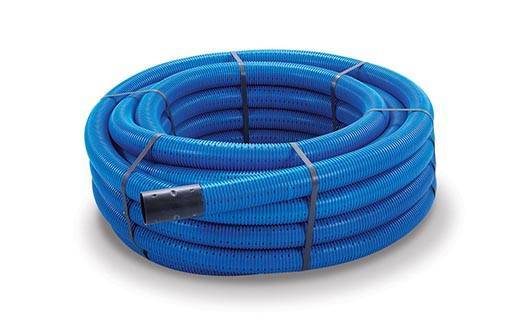

Landcoil

Landcoil is available in 60-200mm diameters as perforated or unperforated, with the blue system being Kitemarked to BS 4962. Also available in black as a non-Kitemarked system. Supported by a ...

Landcoil End Caps

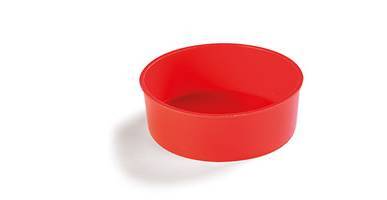

Landcoil End Caps

Landcoil End Caps are available in 60-200mm diameters, and are designed to complement our existing Landcoil range of pipes and fittings. ...

Landcoil Multi-Junctions

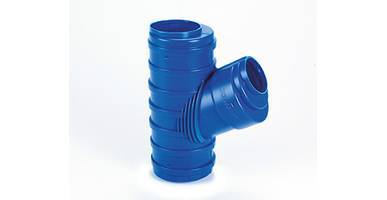

Landcoil Multi-junctions

Landcoil Multi-junctions are available in sizes 60mm to 160mm, and are designed to complement our existing Landcoil range of pipes and fittings Outfall pipe subject to minimum order quantity. ...

Landcoil Couplers

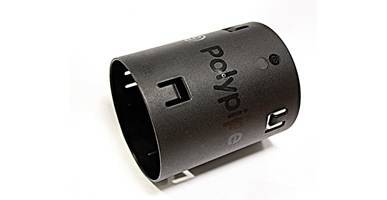

Landcoil Couplers

Landcoil Couplers have a 3 lug design for greater integrity and fit of joint. They are available in diameters from 60-200mm and are Kitemarked to BS 4962. Can also be used with Linflex Fin and Narrow Fi ...

Ridgidrain Inspection Chambers

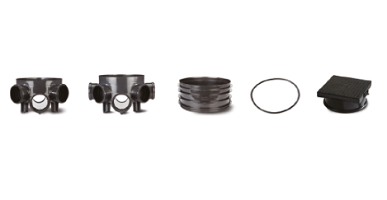

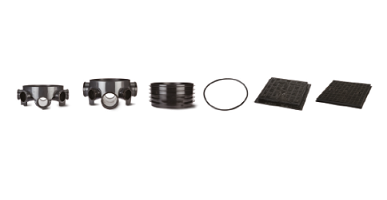

Our Ridgidrain Inspection Chambers are a range of 320mm and 460mm modular polypropylene inspection chambers, and are formed with a pre-benched base, side risers, seals and cover & frames.
Ridgistorm-XL Large Diameter Pipe System
Ridgistorm-XL is an engineered large diameter pipe system, in diameters 750-3000mm, for use in a wide variety of applications including surface water, foul water, combined sewers, large scale flood alleviation schemes, renewable energy and even displacement ventilation.
Permatreat
  Permatreat is a versatile linear treatment system that can provide source control and pollution treatment in a wide variety of locations and applications. Permatreat functions as a combined run-off collection, silt and oil interceptor and treatment system. It is designed to be laid
Ridgitrack Pipes
Ridgitrack is an extension to the popular Ridgidrain surface water drainage piping system, it has been specifically designed for rail applications and is approved for use within London Underground. Available in sizes 150 - 600mm plain ended or in sizes 400 - 600mm integrally socketed, Ridgitrack can
Ridgistorm Chambers
Providing a unique and comprehensive service through our in-house fabrication facility, we are able to create fully engineered solutions to precisely match specific project requirements.
